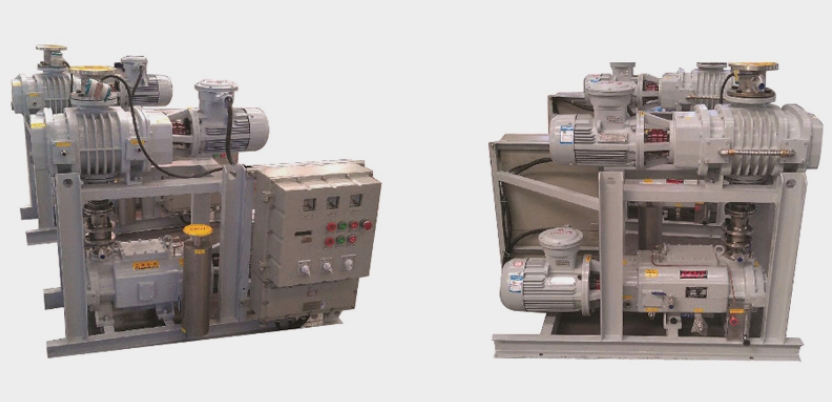

JZJD series dry vacuum unit
Structure and characteristics:
The JZJD series dry vacuum unit is composed of a conventional Roots vacuum pump, a dry screw vacuum pump, valves, frames, and electrical control boxes. The dry screw vacuum pump serves as the front stage vacuum pump, and when the starting pressure of the Roots vacuum pump is reached, it is controlled by a vacuum gauge head and pressure transmitter to start and stop the Roots vacuum pump. Due to the fact that the operating components of Roots vacuum pump and dry screw vacuum pump do not come into contact, the whole machine has the advantages of smooth operation, low noise, compact structure, and small footprint.
Performance characteristics:
1: The JZJD series dry vacuum unit has a wide pumping range (2804320m/h) and high vacuum degree (maximum pressure can reach 0.01Pa). Even under high vacuum, it can maintain a high pumping speed, meeting customers' requirements for high vacuum and high pumping speed.
3: Roots vacuum pump and dry screw vacuum pump can be combined with various combination schemes according to the pumping speed ratio, effectively reducing energy consumption and achieving
To achieve the best cost-effectiveness.
Meaning of Unit Model:
Double Roots Butterfly Rod Vacuum Unit
Example L: IZID1200-4.2(Z1200/ZJ300/DP430)
J-Unit (the first character of Chinese Pinyin ji)
Z] - Roots vacuum spring
D-Type 10 Screw Vacuum Pump (Front Stage Pump)
1200- Main pump pumping speed (pumping speed 1/S)
4. Speed ratio between intermediate pump and main pump
Single Roots screw vacuum unit
Example 2: J2ID600-5(ZJ600/DP430)
J-Unit (the first character of Chinese Pinyin ji)
ZJ Roots vacuum pump
D-Type 10 Screw Vacuum Pump (Front Stage Pump)
600 main pump pumping speed (pumping speed 1/S)
5-speed ratio between the main pump and the front stage pump
2. Speed ratio between intermediate pump and front stage pump
Note: DP430 is a ten type screw vacuum pump with a pumping speed of 1201./S
